Rotary Electrical Connector of 76 Circuits LPC-76A

  • 1
  • 2
  • 3

Brand Name : JINPAT

Model Number : LPC-76A

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 500 pieces a week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Circuits : 76 circuits

Capsule Length : 105.65 mm

Speed : 300 rpm

Available circuit models : 6 , 12 , 18 , 24 , 36 , 56 , 76 circuit models

Voltage : 240 VAC/DC

Contact Material : Gold to Gold

Contact Now

Rotary Electrical Connector of 76 Circuits And High Precision

Description

This kind of slip ring is characterized by compact design. Smooth operation, low torque, low electrical noise, and more circuits customizable.

Special-purpose wires ensure reliable transmitting frequency. Contact material adopts precious metal or super hard plating processing technique to ensure excellent Transmitting performance and longer lifetime. Standardized production and exquisite workmanship create swivels with reliability and high quality.

Specifications
Operating Speed 0-300 rpm
N Circuits 76
Voltage 240 VAC/DC
Rated Current 2 amps per circuit
Temperature Range -20℃ to +60℃
Contact Gold to Gold
Lead Size AWG28 silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electrical Noise 1mΩ Min

Capsule Length =L
# of Circuits L (mm) Part No
76 105.65 LPC-76A

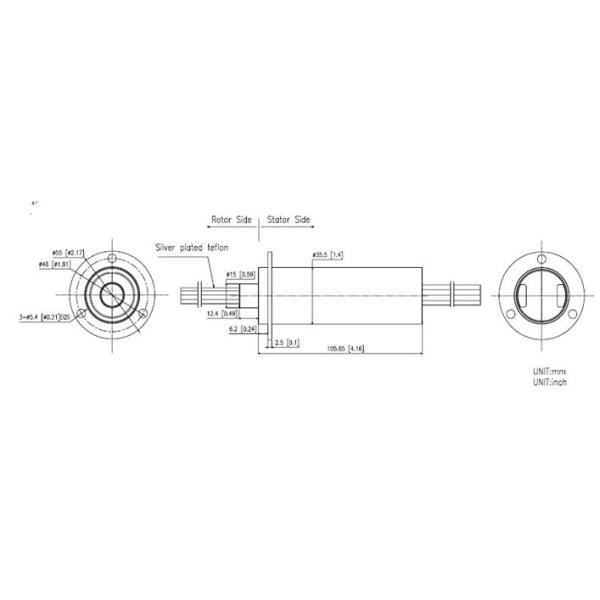

Outside Drawing

Rotary Electrical Connector of 76 Circuits LPC-76A

Product Display

Rotary Electrical Connector of 76 Circuits LPC-76A

Application picture(Armoured Cars SlipRing)

Rotary Electrical Connector of 76 Circuits LPC-76A
